ABViewer is a high-quality, cost-efficient multi-functional design and engineering document management application. ABViewer offers you a wide choice of professional viewing and editing tools. Support of more than 30 both raster and vector formats is provided, including AutoCAD DWG, DXF, DWF, Hewlett-Packard HPGL, PLT, HGL, CGM, SVG, TIFF, BMP, JPG, GIF etc.
- Description
- Features
- Screenshots
- Requirements
Any place other than the first one at the Olympic Games in Ancient Greece was equal to a defeat.

What is the most important feature of ABViewer?
- A combined viewer, editor and converter?
- Support for DWG, DXF, PLT, HPGL, TIFF, SVG, CGM and other industry-standard formats?
- Printing of large formats (e.g. A1), on an A4 printer?
- The versatility to perform all operations from design to engineering with related documentation?
- An easy-to-use, fast, professional and powerful product?
The most important aspect of ABViewer is quality, quality and quality once again!
Supported formats:
- AutoCAD DWG, DXF and all versions of DWF
- Hewlett-Packard PLT Viewer: HPGL, HGL, HG, PRN, SPL
- Scalable Vector Graphics: SVG
- Computer Graphics Metafile: CGM
- PS Adobe
- Windows metafile: EMF, WMF
- All popular raster drawings supported, including TIFF, BMP, JPG, PSD, and GIF
- Full list
Managing Portions of Drawings:
- Copying portions of drawings to the clipboard in raster (BMP) and vector (EMF) formats
- Printing portions of drawings
- Saving portions as separate files (DXF, PDF, BMP, etc)
Editing Drawings:

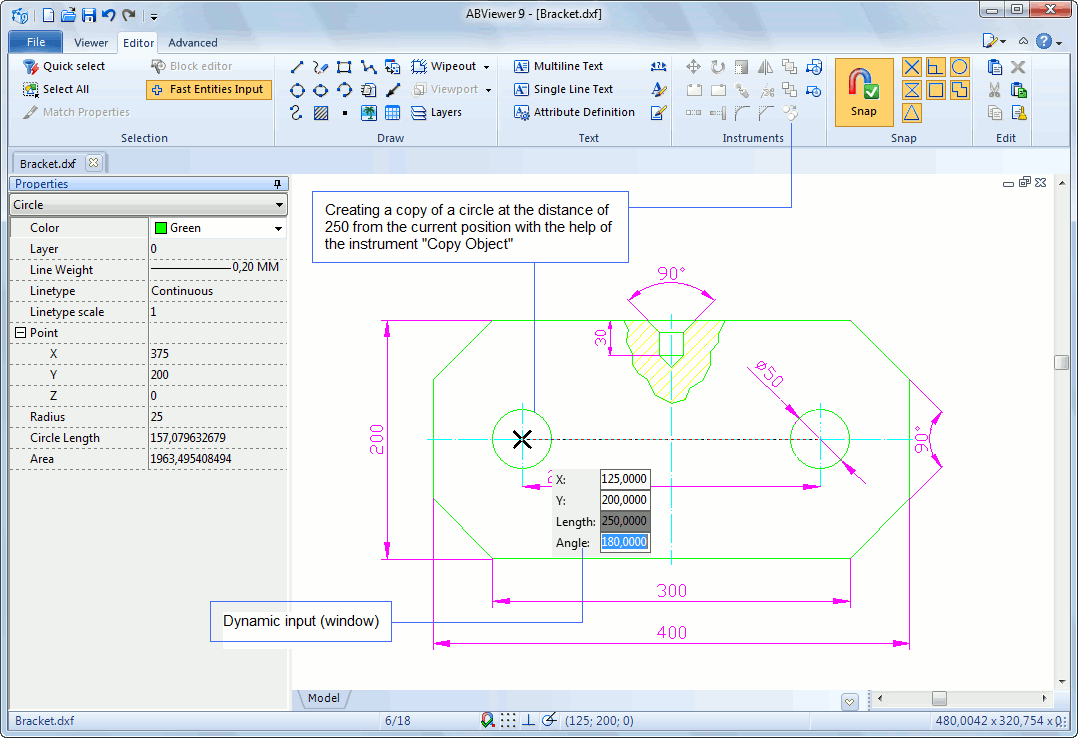

ABViewer allows editing of both standard CAD formats such as DWG and DXF and other vector files: PLT, SVG, CGM. The application provides all the professional editor tools and enables operations supported by ‘heavy editors’, which are usually used for design work.
Conversion Features:
- Copying to the clipboard as BMP, EMF/WMF
- Exporting drawings to raster formats BMP, JPEG, GIF, TIFF with the possibility of additional settings
- Saving vector data when exporting to the vector files: PDF, DXF, PLT, SVG, CGM, SWF, WMF, EMF
- ! Important: Clip Rectangle allows conversion of a selected part of the drawing
Batch Conversion and Batch Print
It is now much faster and easier to print or convert a large number of files into another format. ABViewer supports simultaneous conversion and print in batch mode – with the same settings for all files.
Quick Load and Scaling Big Black-and-White Raster Files:
In ABViewer we have applied our know-how concerning 1-bit (Black-and-white) raster formats management. Huge 15-20 thousand pixel files can be loaded in less than one second. They are immediately scaled – a feature that is very convenient with TIFF scanned drawings.
Measurement Tools:
- Quick and easy setting of scale factor for measurements – no additional computations needed!
- Changing of lengths, areas and perimeters
CAD File Management
- You can hide all texts and sizes in just one mouse click
- Convenient switching between files

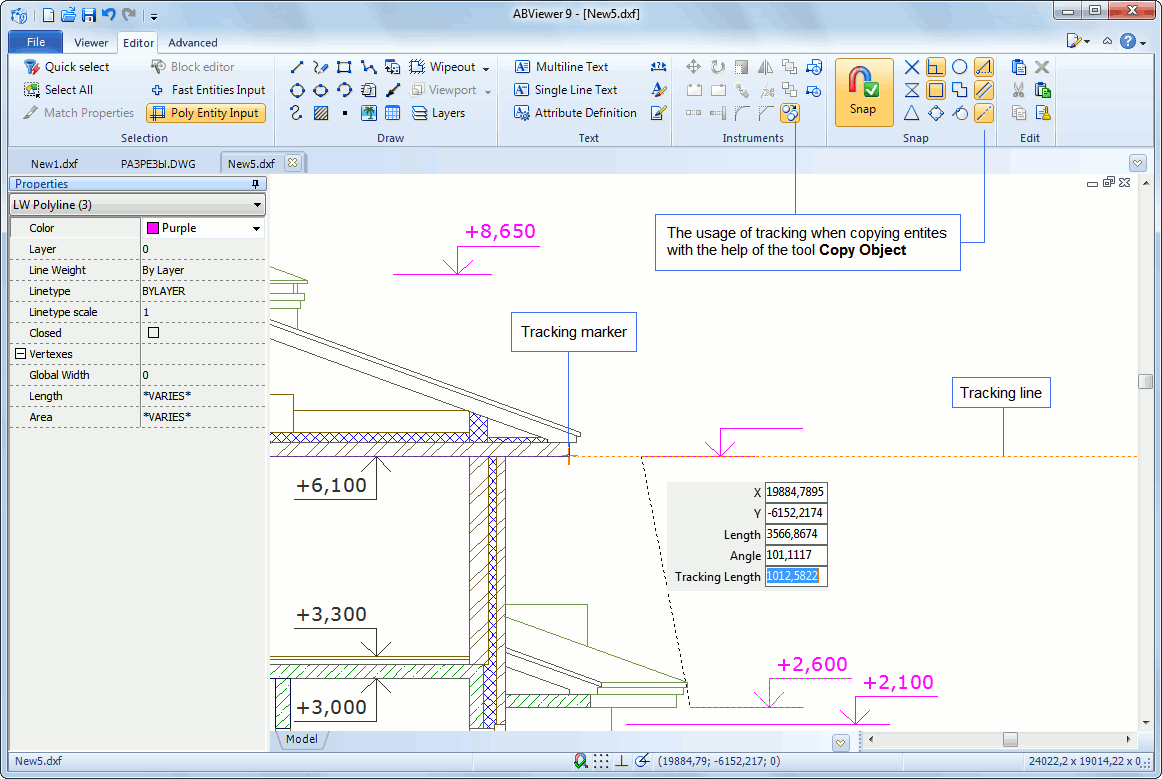

- A large number of settings for snapping to objects, used for both editing purposes as well as for measurement tools
- Measuring distances on a drawing (including the scale factor setting)
- 3D viewing and editing
- Viewing with six orthogonal projections and four isometric views
- Automatic rotation of the loaded CAD file by a given angle
- Managing layers
- Color and black-and-white modes for CAD files
- Choosing background color
- DWG/DXF/SVG/CGM arcs and circles can be drawn as smooth curves and saved as metafile arcs, and ellipses as EMF, which allows scaling without loss in quality
- Setting the quantity of line segments when drawing circles, arcs, ellipses and splines
- Merging drawings into one file
- The possibility of viewing a CAD files structure
- Supporting SHX-fonts, including UNICODE and BIGFONTS.
File Search
Favorites and Explorer panels give the possibility for fast navigation of files. Thumbnails sub-programme allows viewing of all files in a catalogue before they are opened, including DXF, PLT and other files not managed by Windows or ordinary viewers. Due to the up-to-date tab-based document structure, you can navigate between files quickly and easily.
File Navigation
Dynamic scaling of the drawing with the help of the mouse-wheel, like in AutoCAD™. ‘Find text’ and ‘Find point’ quickly link to the necessary part of the drawing. If only the contour of a detail is required in the drawing, it is possible to hide all texts and sizes in one mouse-click; it is not necessary to open layers and change their visibility.
Redline
Redline mode or commentaries to the drawing provide additional information that is ‘applied over’ the drawing but does not change the basic file. All editing elements are at your disposal in this mode. Commentaries and remarks, together with the basic file, can be printed or converted to another format. A drawing can be supplied with many such commentaries. In addition, the path to the redline files containing the remarks can be saved, which allows to load the files automatically when the drawing is opened next time.
Print
- The print feature provides the user with a vast range of capabilities. Both a single file and a set of files can be printed with predefined settings. The ‘Print preview’ dialog box contains a large number of settings, for example DWG/DXF line width, color and layers, and nil width value. Printing ‘in tiles’ allows printing images on any number of sheets of any size with the necessary scale. For example, large images (A0, A1 etc) can be divided into many small pages of different size for subsequent pasting together into one big drawing. Any ‘tile’ can be printed independently. Therefore, if one page seems defective (e.g., because of problems with the printer), it is possible to re-print this page separately. As an alternative to printing the whole file, it is possible to print a selected area (with the help of ‘Clip Rectangle’ that selects the required part) and print the viewing frustum. Color drawings can be printed with a black-and-white printer in high quality and without grey half-tones. There are a number of frames that can be inserted onto the printed page.
- Preset sizes for standard formats (ISO-A; DIN: A4, A3, A2, A1, A0; US: A, B, C, D, E).
Supported Formats
ABViewer can be associated with all the supported formats
- Supported CAD formats:
- AutoCAD™:
- DWG – all versions (from 2.5 to 2009 inclusive)
- DXF ASCII (all versions)
- Template files: DWT
- Autodesk Design Web Format: DWF
- Hewlett-Packard HPGL: PLT, HGL, HG, HPG, PLO, HP, HP1, HP2, HPGL, HPGL2, GL2, PRN, SPL
- Scalable vector graphics: SVG
- Computer graphics metafile: CGM
- Adobe Postscript: PS
- Supported raster pictures:
- Bitmaps: BMP, RLE, DIB
- Icons: ICO
- Compuserve GIF: GIF
- Arts & Letters thumbnail: GED Images
- Autodesk: CEL, PIC Images
- CALS Raster: CAL
- Images Dr. Halo: CUT, PAL
- Images GFI fax: FAX
- JPEG images: JPG, JPEG
- Images Kodak Photo-CD: PCD
- Images Paintshop Pro: PSP
- Images Photoshop: PSD, PDD
- Images Portable network graphic: PNG
- Images Portable pixel/gray map: PPM, PGM, PBM
- Images SGI: BW, RGB, RGBA, SGI
- Images SGI Wavefront: RLA, RPF
- Images TIFF: TIF, TIFF
- Images Truevision: TGA, VST, VDA, WIN
- Images ZSoft Paintbrush: PCX
- Supported vector images:
- Metafiles: WMF
- Enhanced Meta File: EMF
Export to the following formats:
- Adobe Acrobat Document (*.pdf)
- Adobe Flash (*.swf)
- AutoCAD™ DXF (R2000): (*.dxf)
- Bitmap Files: (*.bmp)
- Computer Graphics Metafile: (*.cgm)
- GIF (*.gif)
- Hewlett-Packard HPGL: (*.plt)
- JPEG: (*.jpg)
- TIFF (*.tiff)
- Scalable Vector Graphics: (*.svg)
- Windows Metafiles: (*.wmf)
- Windows Enhanced Metafiles: (*.emf)

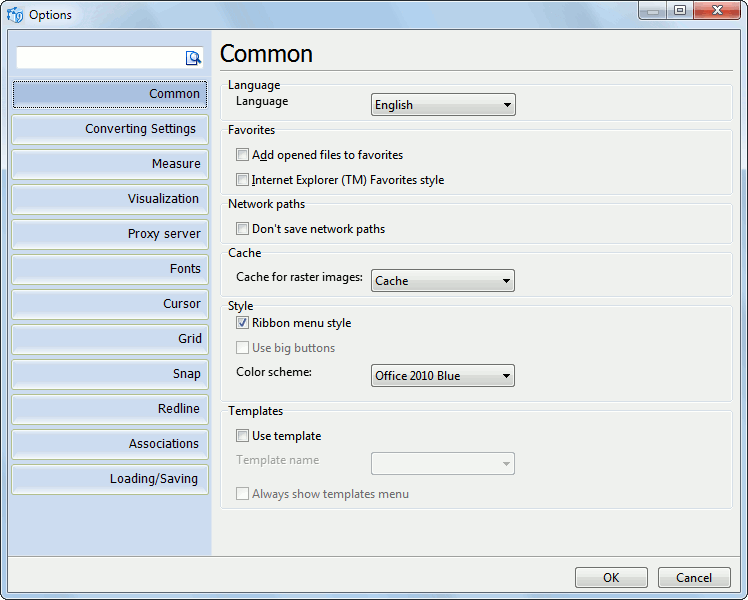

Languages
- There is support for more than 30 languages:
- Arabic
- Brazilian Portuguese
- Bulgarian
- Belarusian
- Chinese
- Croatian
- Czech
- Danish
- Dutch
- English
- Estonian
- Finnish
- French
- Greek
- German
- Hebrew
- Hungarian
- Italian
- Japanese
- Korean
- Norwegian
- Polish
- Portuguese (Portugal)
- Romanian
- Russian
- Serbian
- Slovak
- Slovenian
- Spanish
- Swedish
- Taiwanese
- Turkish
- Ukrainian
 |

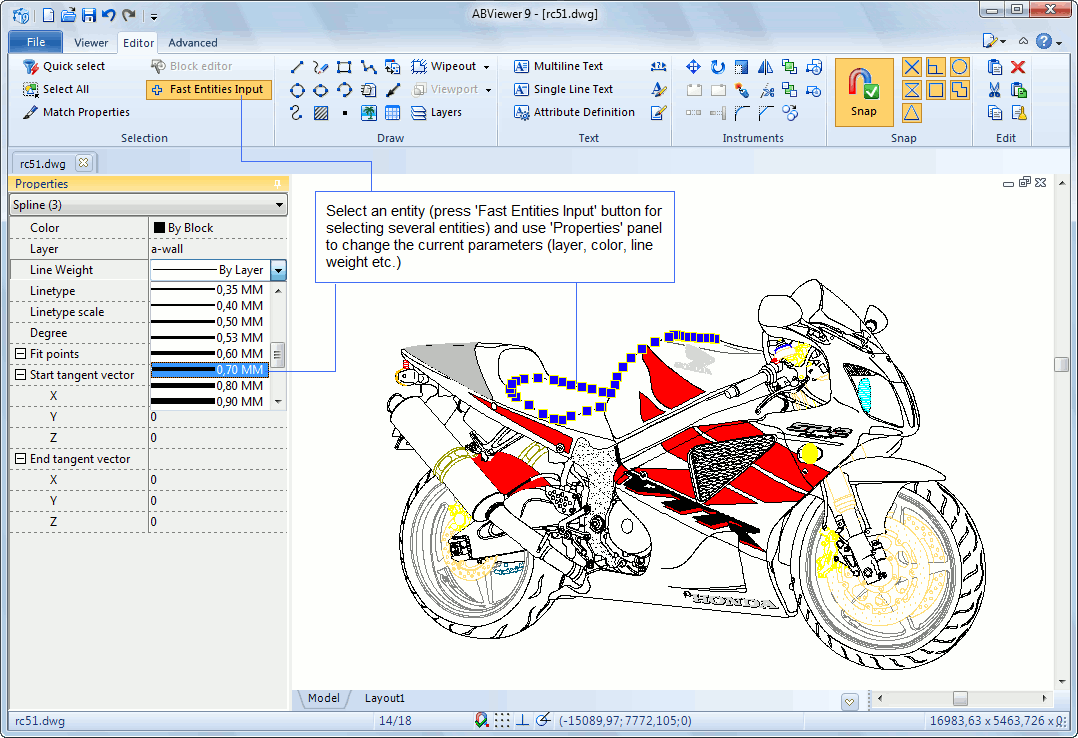

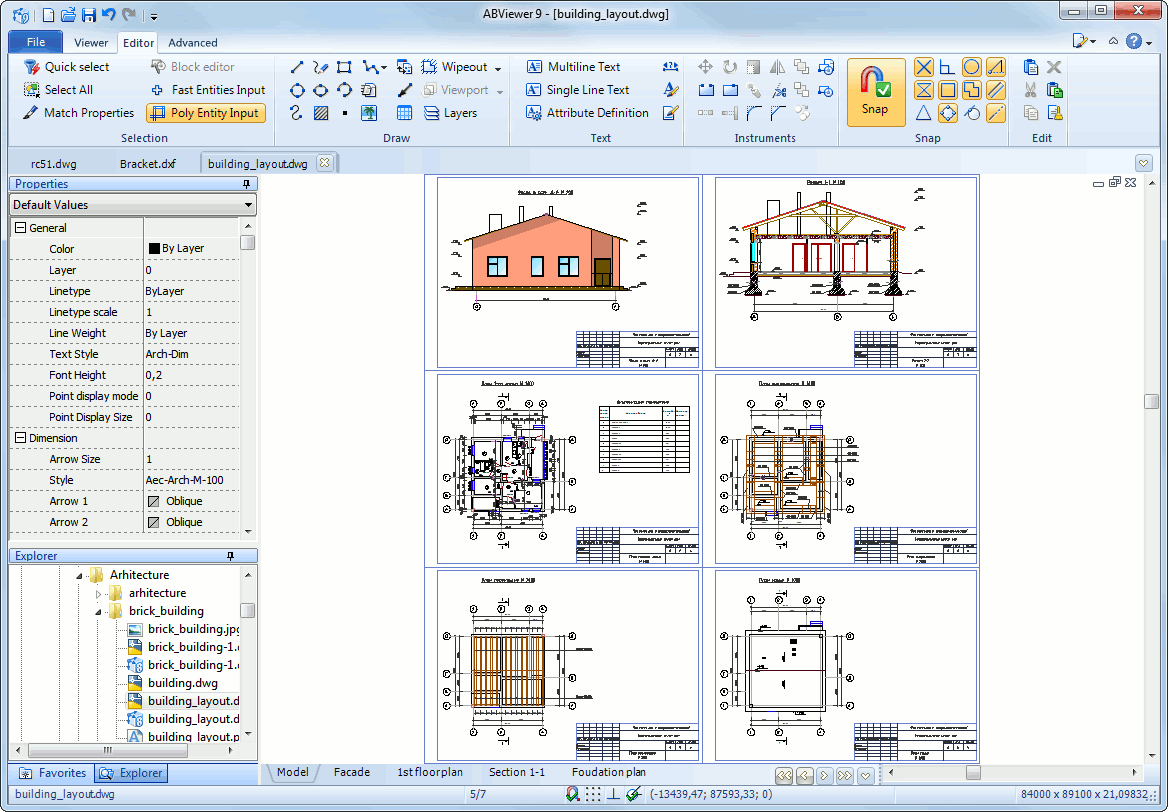

This screenshot demonstrates Properties panel. It gives quick and convenient access to entities' properties. It is very useful for editing CAD files or working with Redline entities.
|
|
|
 |
This screenshot demonstrates Thumbnails window.
|
|
|
 |

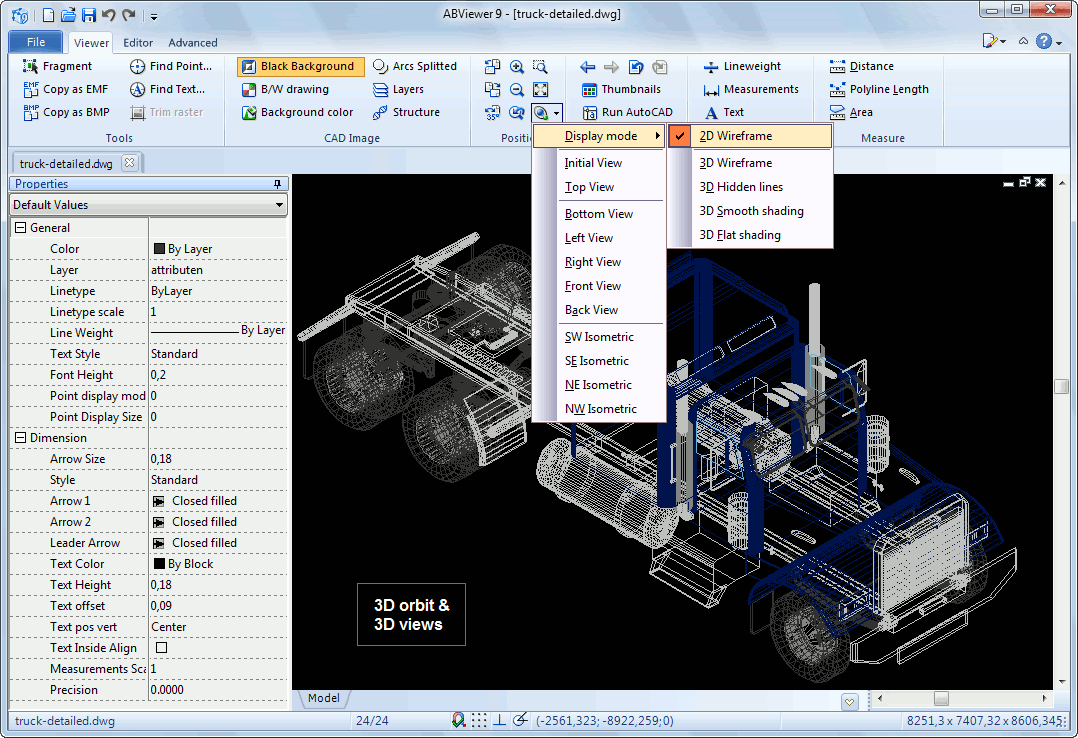

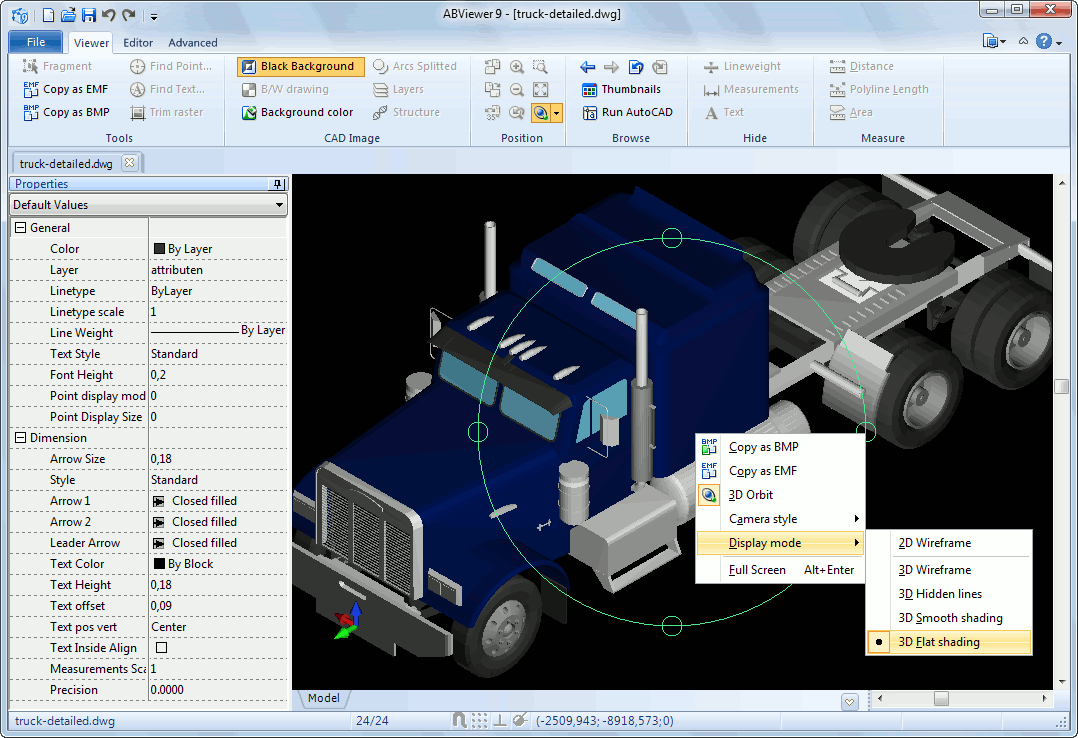

This screenshot demonstrates 3D viewing for CAD files.
|
|
|
 |

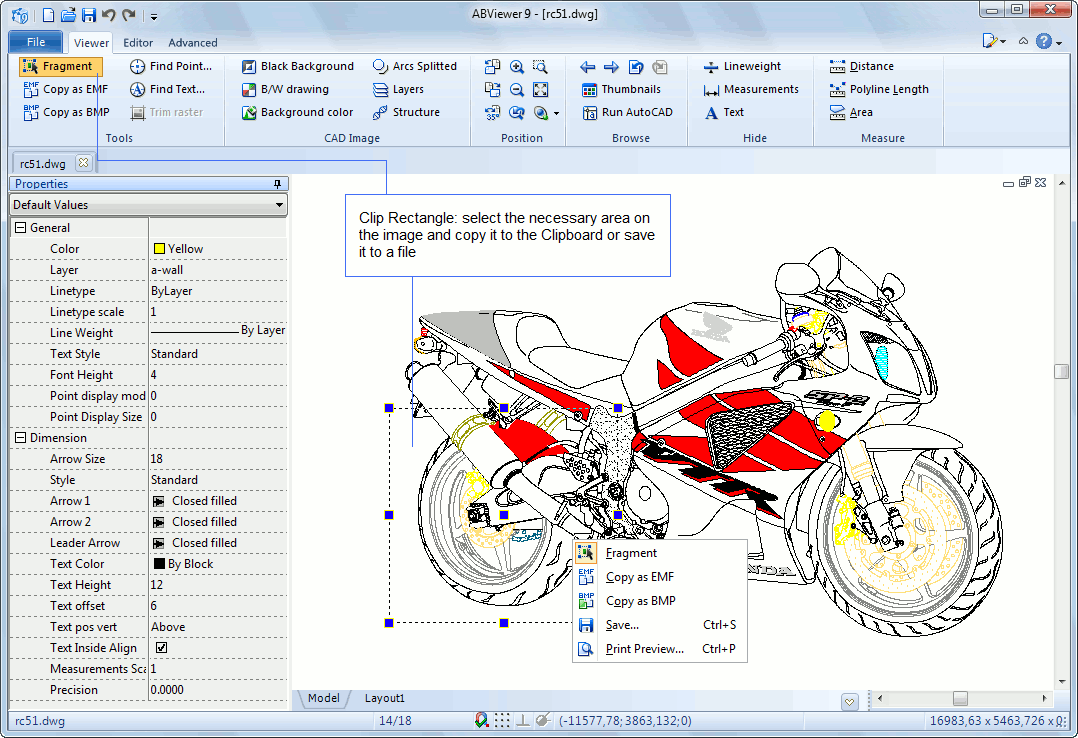

This screenshot demonstrates how Clip Rectangle allows managing the image.
|
|
|
 |
This screenshot demonstrates the result of cooperation between Clip Rectangle and Print Preview (see picture above).
|
|
|
 |

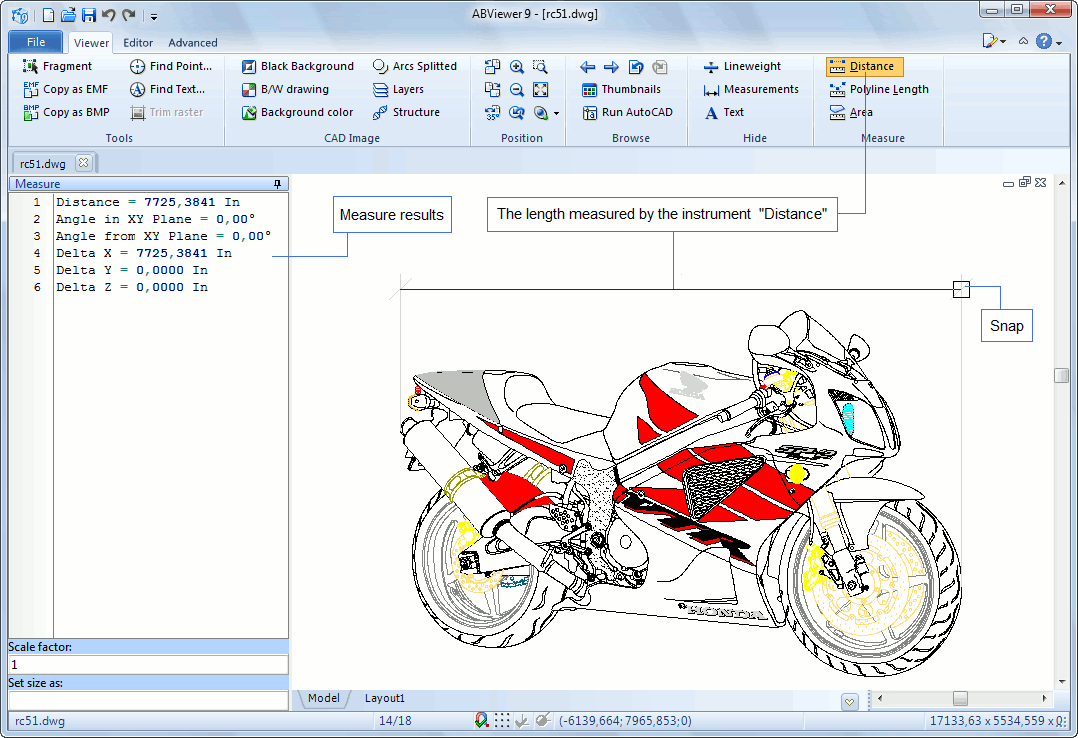

This screenshot demonstrates result of measuring a distance on the drawing.
|
|
|
 |
This screenshot shows how to bring the dimensions in the drawing to the necessary value (for example to show the actual size of the drawing prototype) by setting just one known dimension, after which all other dimensions are changed in accordance with the scale of the drawing.
|
|
|
 |

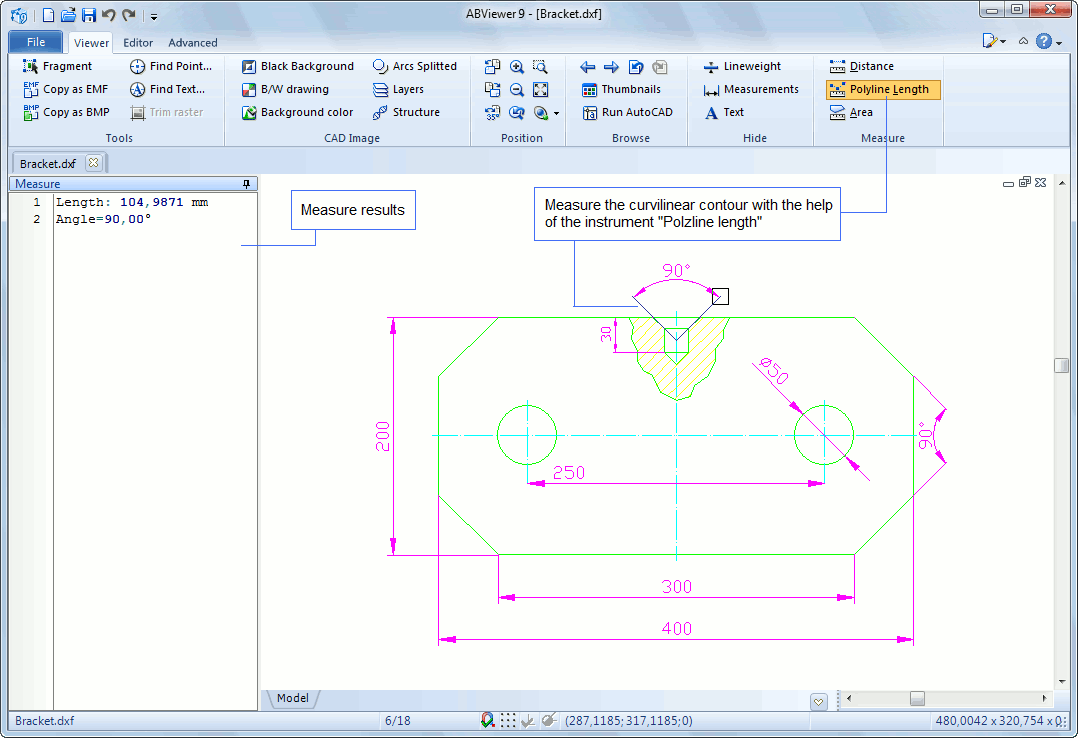

This screenshot demonstrates measuring of arbitrary polyline.
|
|
|
 |

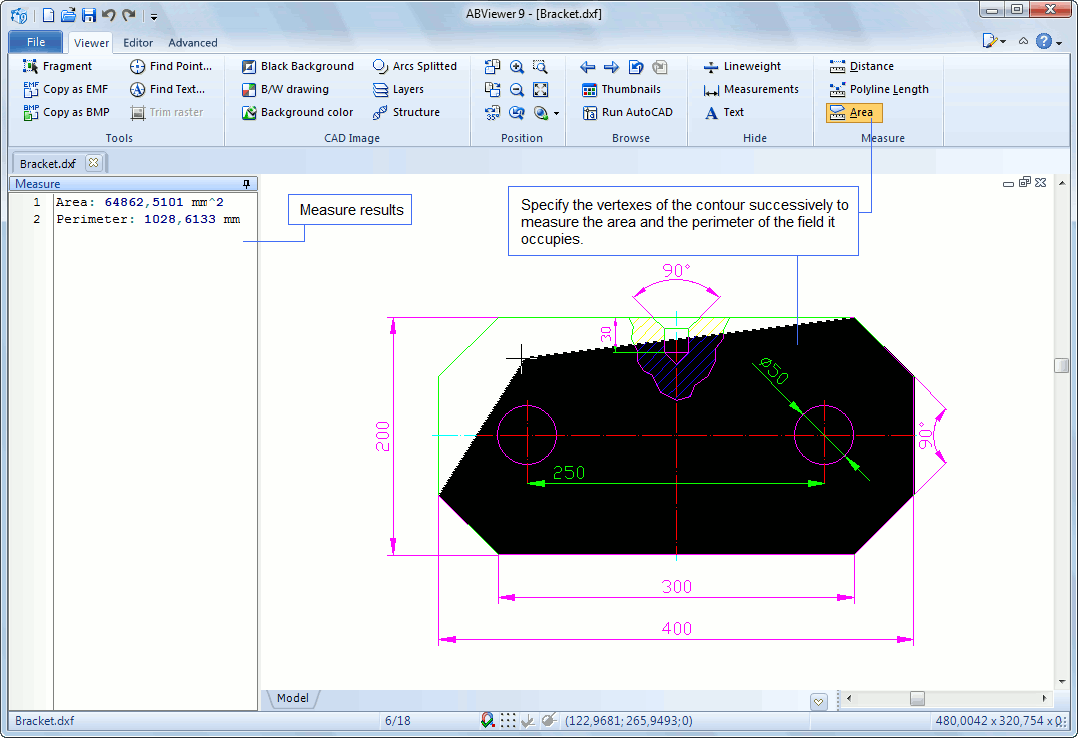

This screenshot demonstrates measuring of an area on the drawing.
|
|
|
 |

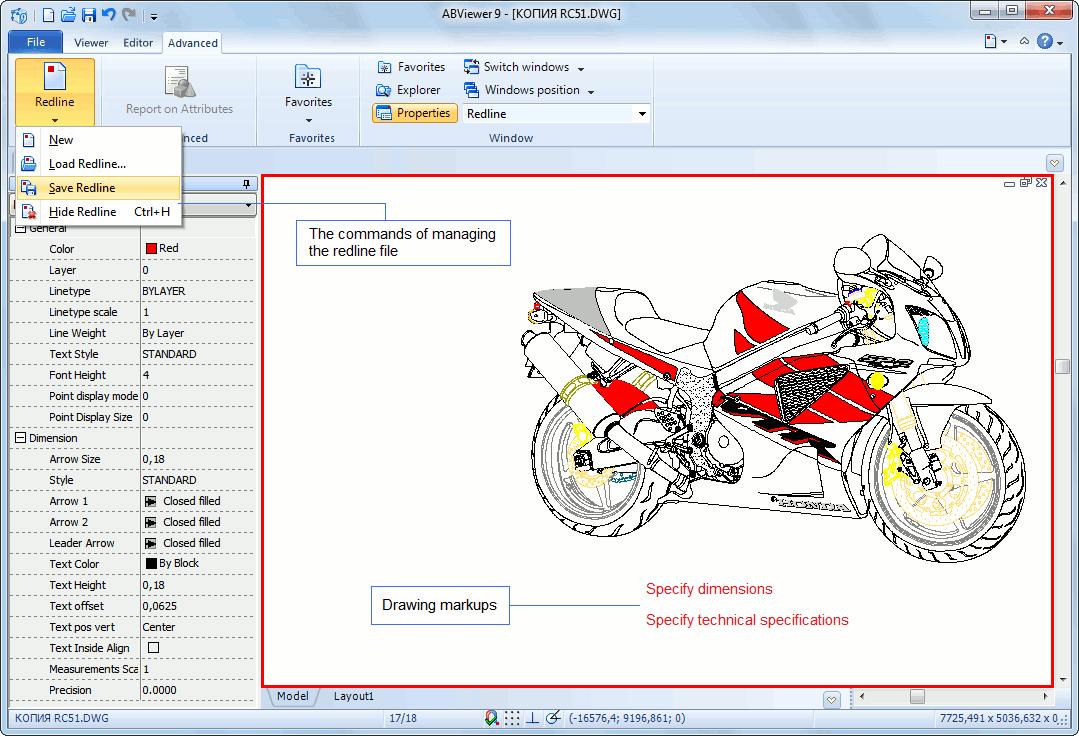

This screenshot demonstrates Redline elements over the drawing.
|
|
|
 |

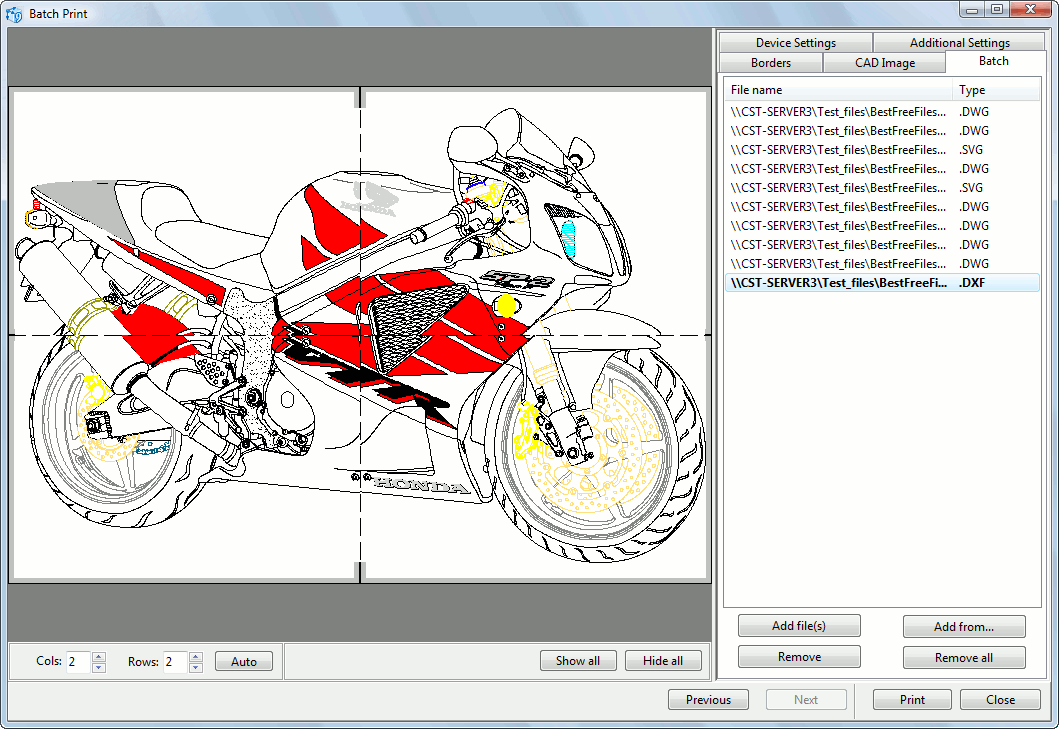

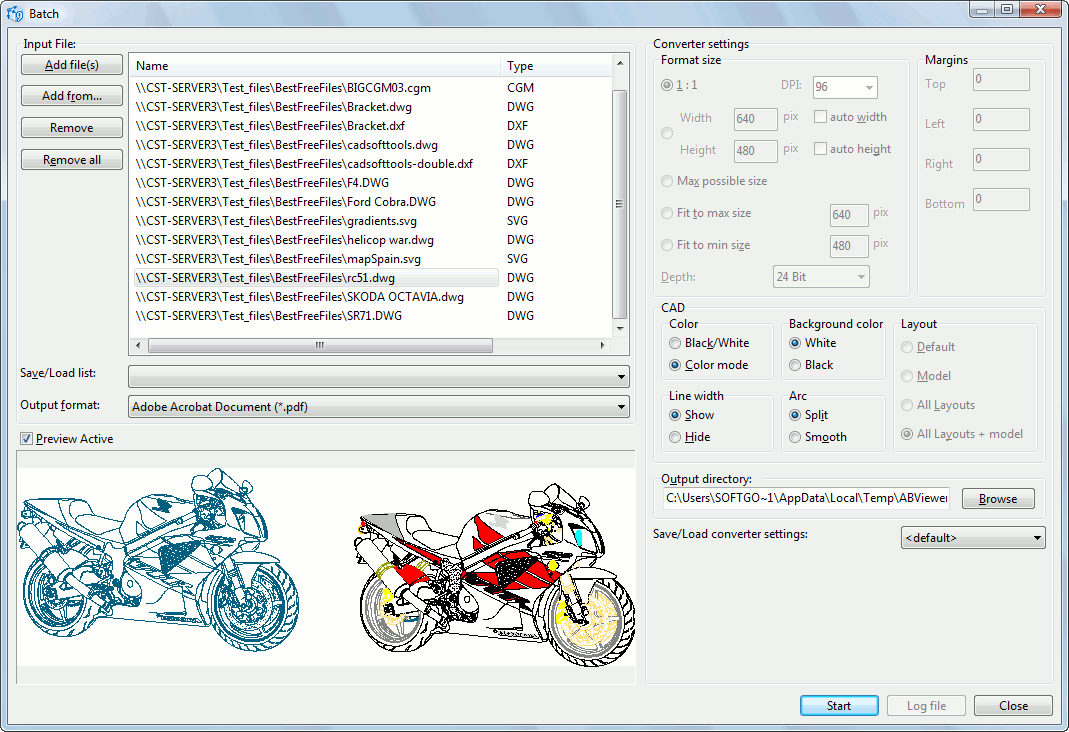

This screenshot demonstrates Batch dialog window.
|
|
|
 |

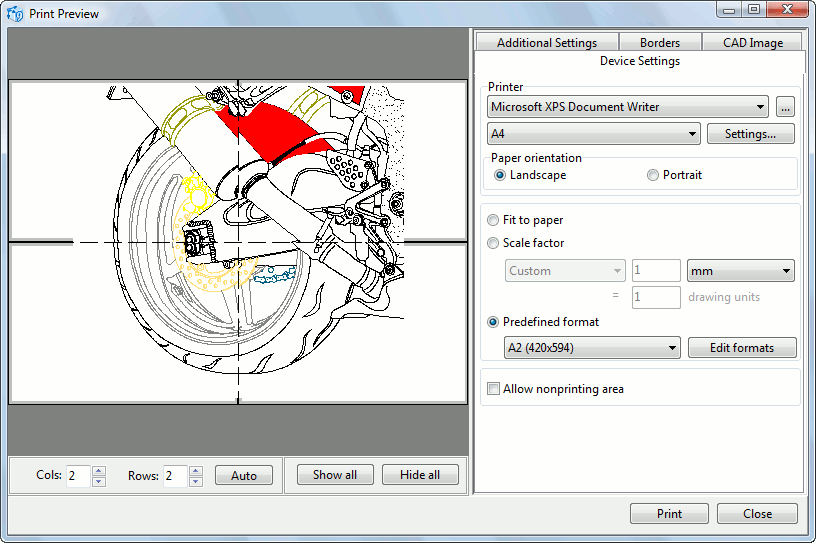

This screenshot demonstrates Print Preview dialog for batch printing.
|
